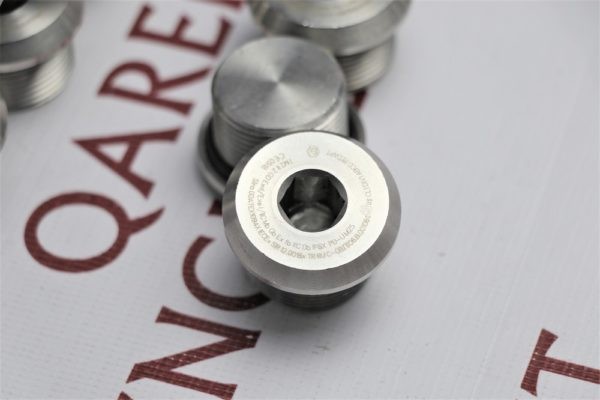

Взрывозащищенная заглушка Redapt PD-U M25 | Explosion Proof Plug Redapt PD-U M25

Technical specifications
Code of protection categories
ATEX: I M2/II 2 GD
IECEx: Ex db I/IIC Mb/Gb, Ex eb I/IIC Mb/Gb, Ex tb IIIC Db (Aluminium not mining)
CSA: Ex db / Ex eb IIC Gb IP66/67/68
Cl I Zn 1 AEx eb / AEx db IIC Gb
Cl I Div1 Gr ABCD Cl II Gr EFG Cl III; Type 4X/6P
Compliance standards
ATEX: EN 60079-0, EN 60079-1, EN 60079-7, EN 60079-31
IECEx: IEC 60079-0, IEC 60079-1, IEC 60079-7, IEC 60079-31
CSA: CAN/CSA C22.2 No. 60079-0, No. 60079-1, No. 60079-7, ANSI/UL 60079-0,
60079-1, 60079-7, UL1203
Certificate details
ATEX: ITS16ATEX101335X
IECEx: IECEx ITS 16.0012X
EAC: RU C-GB.M 62.B.06226
CSA: CSA01CA1248014X
INMETRO: NCC 18.0133 X
CCoE: P362565/1
Temperature
Temperature will depend on the type of O-ring used:
None: -60°C to +200°C
Nitrile: -30°C to +80°C (supplied as standard)
EPDM: -50°C to +100°C
Neoprene: -40°C to +80°C
Viton: -20°C to +180°C
Silicone: -60°C to +180°C
Fluorosilicone: -60°C to +130°C
The maximum temperature is limited to +150°C for Group I applications
Ingress protection (IP):
IP66, IP68, CSA Enclosure Type (NEMA 4X, 6P)
Part number:
Please refer to part numbering system below
